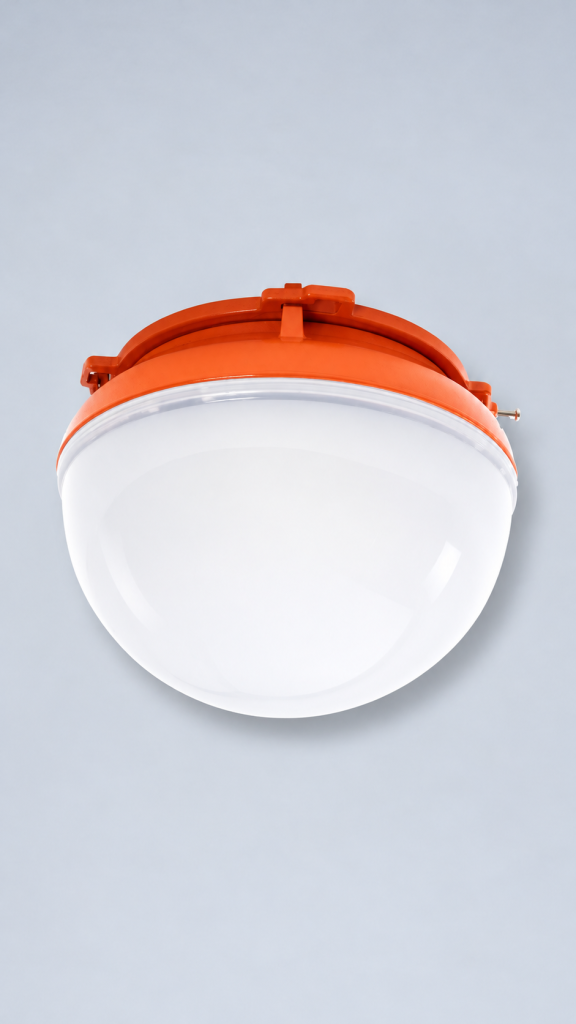

CBM Orbis Ceiling Globe LED Light

Durable, Dimmable LED Ceiling Lighting for Agricultural and Livestock Facilities

The CBM Orbis Ceiling Globe LED Light is a versatile agricultural lighting fixture designed to deliver dependable illumination in demanding barn environments. Manufactured by CBM Lighting, the Orbis combines energy-efficient LED technology, adjustable colour temperatures and precision dimming in a compact, dustproof and waterproof ceiling-mounted design.

Available with selectable 15W and 20W power settings, the Orbis produces up to 2,500 lumens of light output with a wide 150° beam angle. Its adjustable colour temperature settings of 3000K, 5000K and 6500K allow producers to customize lighting conditions according to their facility requirements.

Featuring an IP67-rated enclosure, impact-resistant polycarbonate cover and aluminum heat sink, the CBM Orbis is built for environments where moisture, dust and frequent cleaning are part of daily operations.

Key Features & Benefits

• Selectable 15W and 20W Output: Allows producers to choose between two power settings, providing 1,875 or 2,500 lumens of illumination.
• Adjustable Colour Temperature: Offers 3000K, 5000K and 6500K settings to accommodate different lighting requirements.
• Precision Dimming: Supports light intensity adjustment from 0.2% to 100% with compatible lighting controls.
• Wide 150° Beam Angle: Distributes light across a broad area for effective ceiling-mounted illumination.
• Energy-Efficient LED Technology: Delivers a rated luminous efficiency of 125 lumens per watt.
• IP67 Waterproof Protection: Helps protect the fixture against dust and water exposure in demanding agricultural environments.
• IK10 Impact Resistance: Features a robust, impact-resistant design suitable for livestock facilities.
• Ammonia-Resistant Polycarbonate Cover: Helps protect the fixture in agricultural environments where ammonia exposure may occur.
• Aluminum Heat Sink: Supports heat dissipation to maintain dependable LED operation.
• Low-Flicker Illumination: Produces less than 4% non-visible flicker, supporting consistent lighting conditions.
• High Colour Rendering: Offers a colour rendering index of at least 80 for clear, natural-looking illumination.
• Long Service Life: Rated for at least 50,000 operating hours to help reduce lighting maintenance requirements.
• Washable Construction: Designed to accommodate specified high-pressure and steam cleaning procedures.
• Standard Ceiling Box Compatibility: Designed for installation with compatible OB15/10 octagonal electrical boxes.
• Five-Year Manufacturer Warranty: Backed by CBM Lighting’s published warranty.

How the CBM Orbis Ceiling Globe Works

The CBM Orbis uses integrated LED technology to provide adjustable overhead lighting for agricultural buildings.

Step 1 — Ceiling Installation

The fixture mounts to a compatible ceiling electrical box, providing a compact overhead lighting solution.

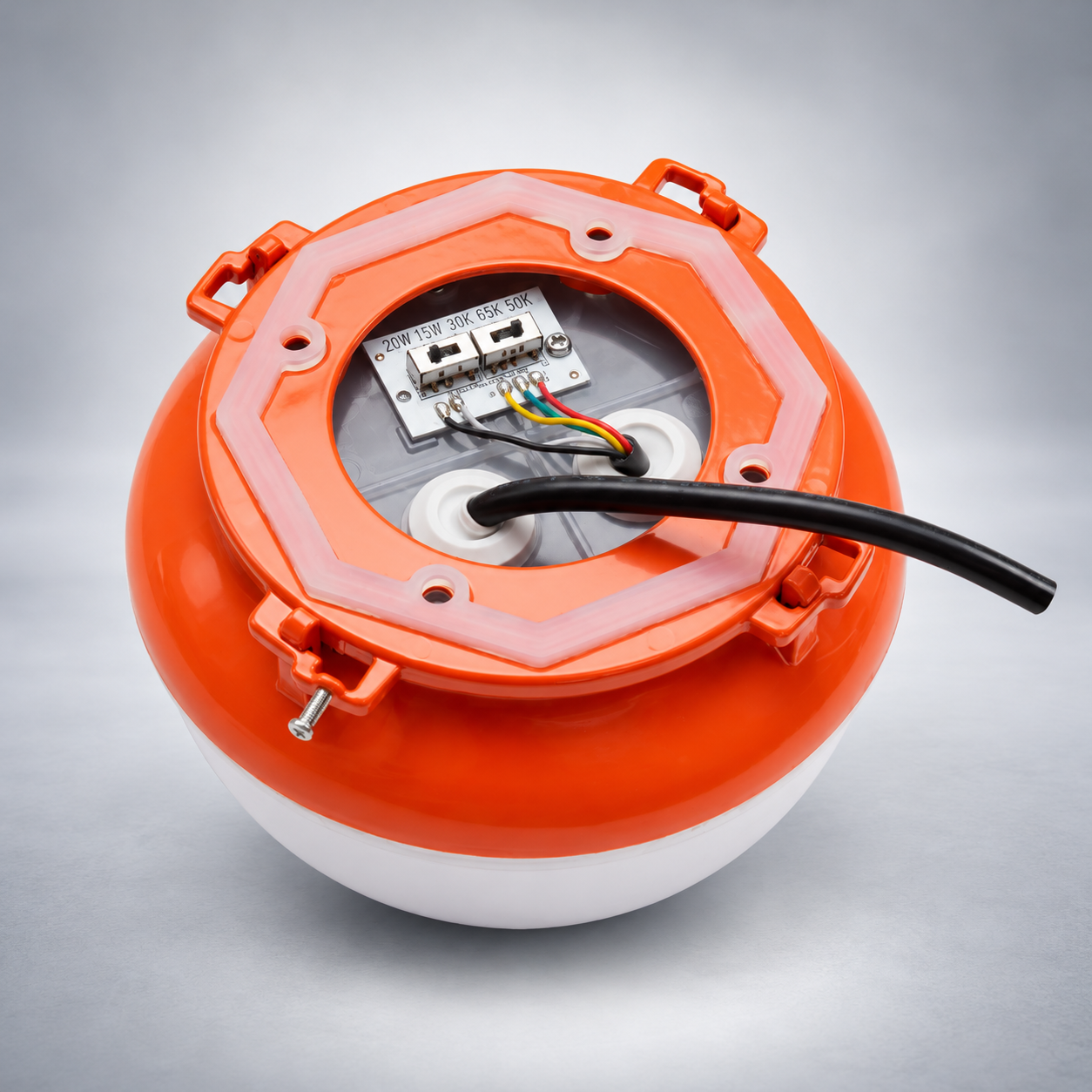

Step 2 — Power Selection

The selectable 15W or 20W setting allows the light output to be configured for the application.

Step 3 — Colour Temperature Selection

The fixture can be set to 3000K warm white, 5000K neutral daylight or 6500K cool daylight illumination.

Step 4 — Wide-Angle Light Distribution

The frosted optical cover distributes illumination through a 150° beam angle.

Step 5 — Lighting Control

Compatible dimming equipment allows light intensity to be adjusted from 0.2% to 100%.

Energy-Efficient Ceiling Lighting

The CBM Orbis delivers 1,875 lumens at 15W or 2,500 lumens at 20W.

Its rated efficiency of 125 lumens per watt makes it a practical option for producers looking to improve lighting performance while managing electricity consumption.

Actual energy savings depend on existing fixtures, operating hours, dimming settings and the facility’s lighting requirements.

Contact County Line Equipment to learn more about the CBM Orbis Ceiling Globe and discuss lighting solutions for your agricultural operation in Southwestern and Central Ontario.
