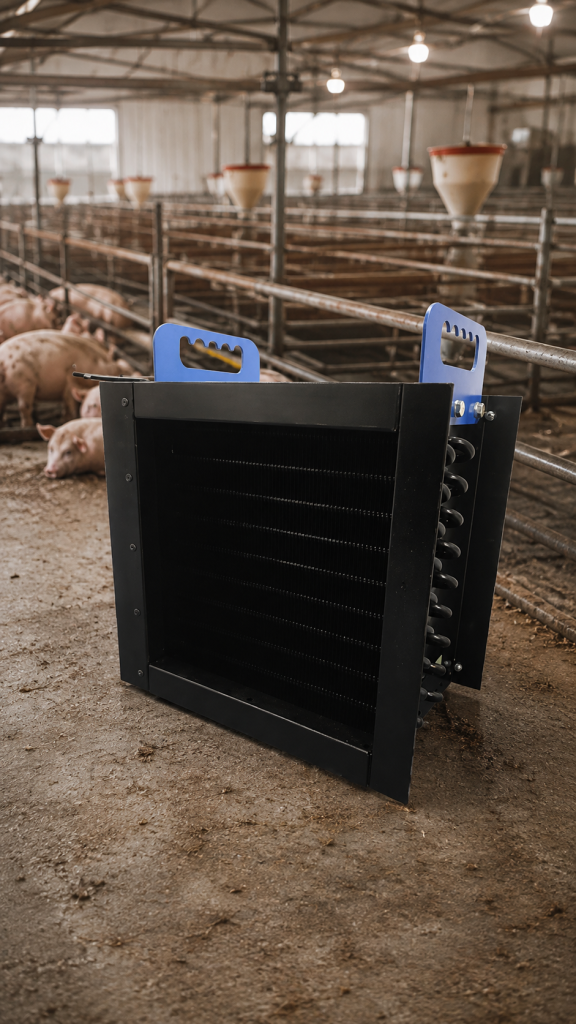

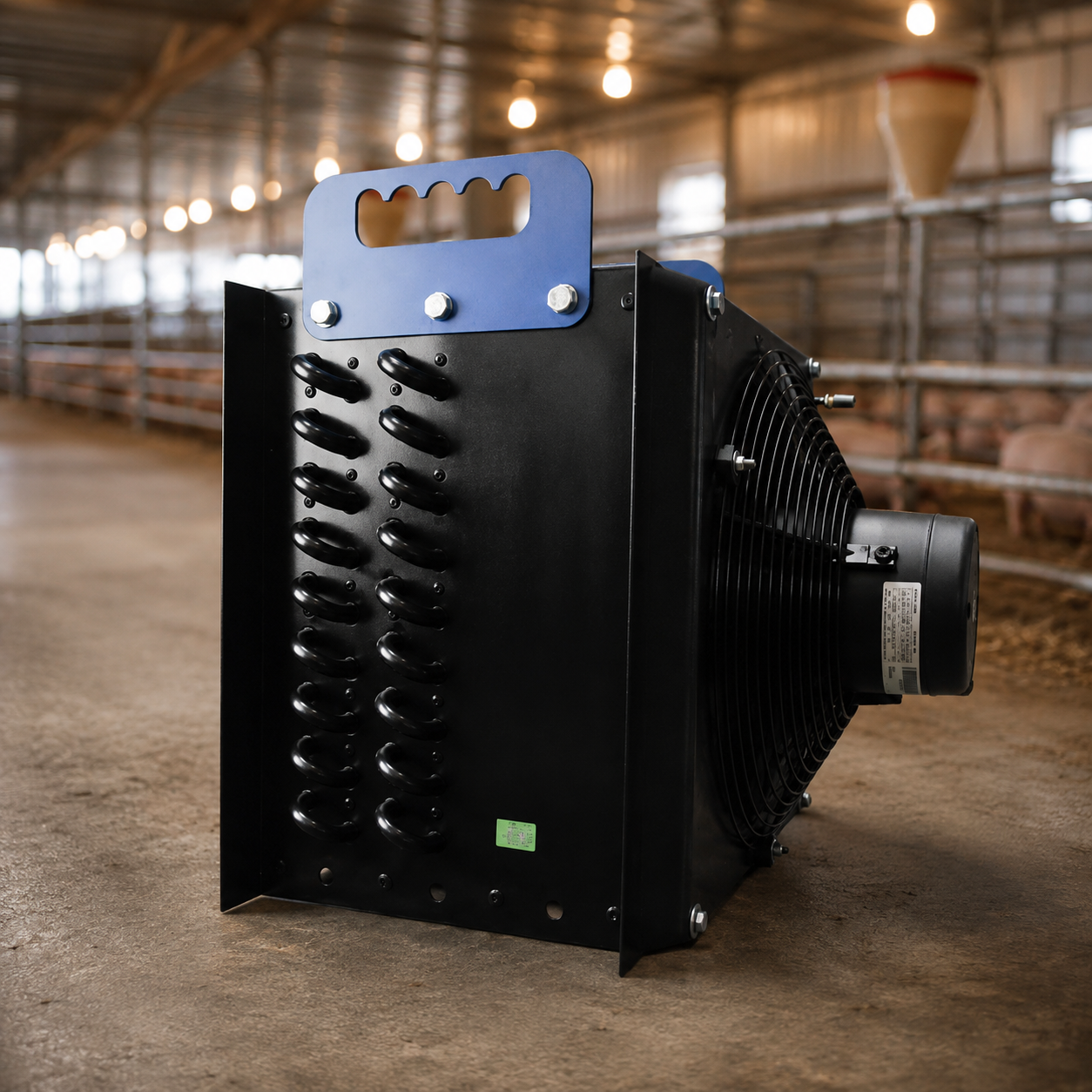

Exacon MultiHeat Rad Heater

The MultiHeat Rad Heater is a compact, powerful hot-water heating solution designed to help maintain a comfortable climate inside livestock barns. The heater combines efficient heat output with high air capacity to distribute warm, dry air throughout the barn.

The MultiHeat Hog Heat Superior delivers between 11 and 16 kW of heat output, equivalent to approximately 37,530 to 54,600 BTU, depending on water supply and operating conditions. Its powerful fan provides an air capacity of 1,600 m³/h (940 CFM) to help circulate heated air throughout the barn.

Key Features:

• Efficient Barn Heating — Provides hot-water heating for livestock environments.
• High Heat Output — Delivers up to 16 kW or approximately 54,600 BTU under specified conditions.
• Powerful Air Circulation — Moves up to 1,600 m³/h (940 CFM) of air.
• Dry Warm Air — Helps create a comfortable barn environment while producing dry heat.
• No Open Flame — The heater does not use an open flame inside the barn.
• No Combustion Gases in the Barn — The system does not spread CO₂ or noxious gases inside the livestock facility.
• Summer Air Circulation — The fan can also be used to circulate cool air during warmer weather.
• Durable Construction — Features a double epoxy-coated exterior designed for demanding barn conditions.
• Compact Design — The complete unit weighs approximately 24 kg (53 lb), excluding water.
• Flexible Installation — Includes a flexible hanging system for installation in livestock facilities.

High Air Capacity

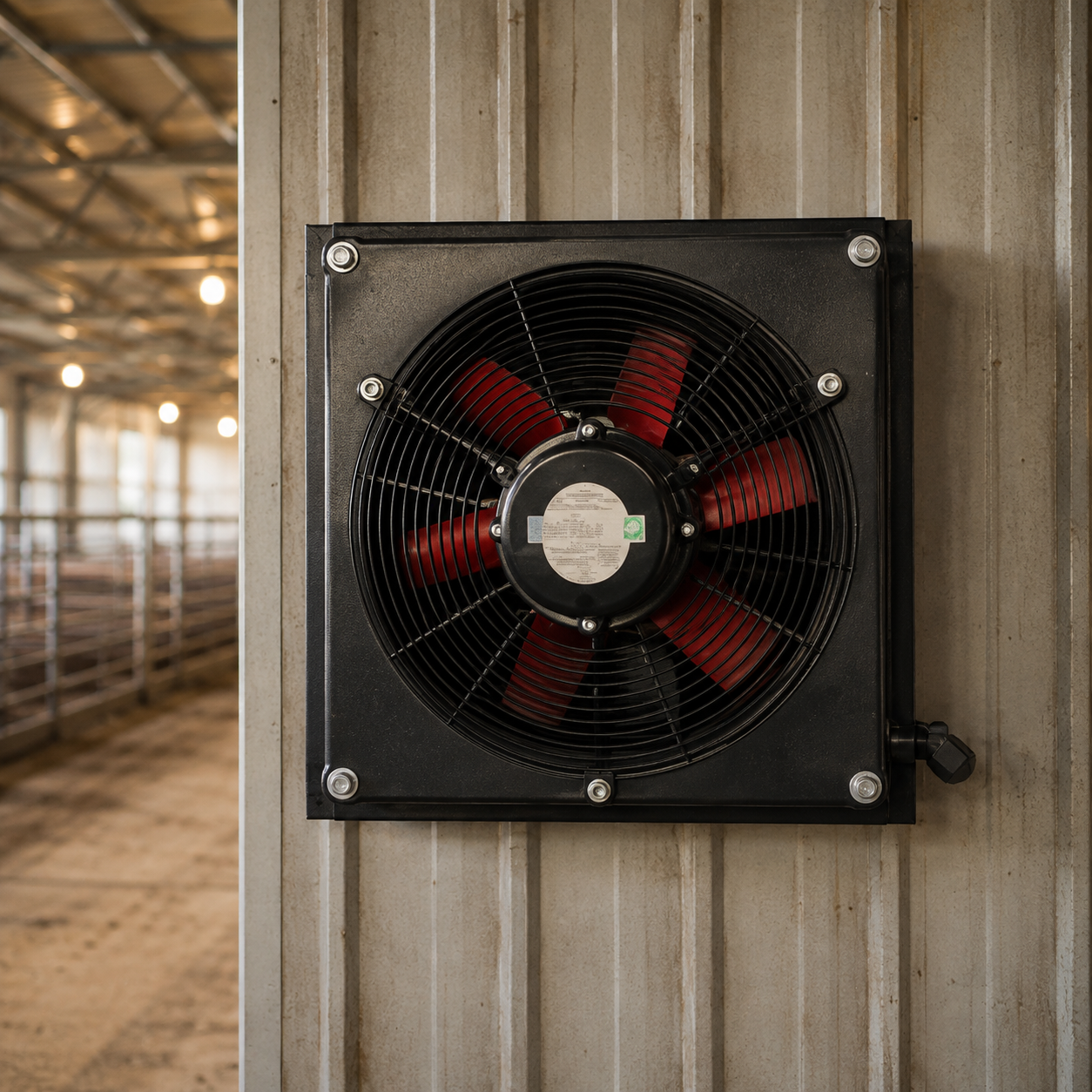

With an air capacity of 1,600 m³/h (940 CFM), the MultiHeat heater provides strong air movement to distribute heat throughout the livestock area.

The built-in fan operates at 1,400 RPM and uses a 100 W motor. The standard configuration is single-phase, 230 V and 0.5 A, with three-phase and 60 Hz options also available.

MultiHeat Heating Performance

Heating output depends on the water supply and return temperature as well as the ambient temperature.

Heating and Air Circulation in One System

The MultiHeat system can provide more than heating alone. During warmer weather, the heater can also be used to circulate cool air inside the livestock barn.

This makes the MultiHeat Rad Heater a versatile component of a barn climate management system, providing useful air movement throughout different seasons.

Contact County Line Equipment for product information, availability and help determining whether the MultiHeat system is suitable for your barn heating requirements.
